Industrial Welding Machines

Industrial Welding Machines

MIG / MAG WELDING MACHINES :-

*   Constant potential rectifiers suitable for Dip and Spray
     metal transfers.
*   Superb Welding characteristics with separate multi
     position D.C. choke for all position welding.
*   Separate lightweight wire feeder gives better reach.
*   Smooth wire feeding by thyristorised D.C. drive.

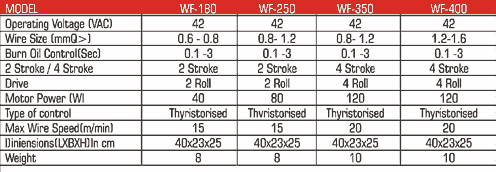

*   Wire feeder incorporates 2 strokes / 4 strokes
    operations and Burn-off control for easy welding.
*   High Reliability, all position capability, ease of use,
    low cost and high productivity make MIG / MAG a
    natural choice for many welding application.

SPECIFICATIONS :-

A. POWER SOURCE :-

MODEL	MIG - 180	MIG - 250	MIG - 350	MIG - 400

Input Supply ( V )	1 x 220/230	3 x 380/415	3 x 380/415	3 x 380/415/440
Frequency ( Hz )	50	50	50	50
Off-Load Voltage ( VDC )	15-34	17-36	17-38	18-50
Max. Welding Current Load 100%	120	200	230	315
Load 60%	140	250	275	400
Load 40%	180	-	350	-
Welding Current ( A ) ( Min. to Max. )	30 - 180	50 - 250	50 - 350	60 - 400
Power Consumption ( KVA )	6.2	9	13.5	20
Inductance Tapping	2	2	2	3
Insulation ( Class )	H	H	H	H
Cooling	Fan	Fan	Fan	Fan
IS Comforms to	7931	7931	7931	7931
Fuse Rating A	DP 16 / 25	TP 16	TP 16 / 25	TP 25 / 32
Cross selection of input cable ( mm2 )	2 x 4	3 x 2.5	3 x 4	3 x 4
Rectifier Bridge	SIL Diodes	SIL Diodes	SIL Diodes	SIL Diodes
Cross section of Weld Cable (mm2)	16 / 25	25 / 35	35 / 50	50
Dimension ( L x B x H ) cm	50 x 35 x 59	58 x 40 x 59	63 x 45 x 59	83 x 52 x 75
Weight	60	80	95	140
