THYRISTORISED WELDING
RECTIFIERS : * Accurate and repeatable welding current setting for
MMA welding with
exceptional arc stability and
controlled heat input.
* True vertical welding current characteristics.
* Stable arc with regular droplet transfer.
* Constant penetration for more regular welds
* Less Spatter.
* Built-in electronically controlled ' Antistick ' for
prevention of electrode freezing and ' Hot Start ' for
improved starting.
* Built-in-protection against H.F. interference and
thermal run away.
* Power Source suitable for TIG welding when connected
with
TIG console for NORMAL AND PULSED TIG.
|

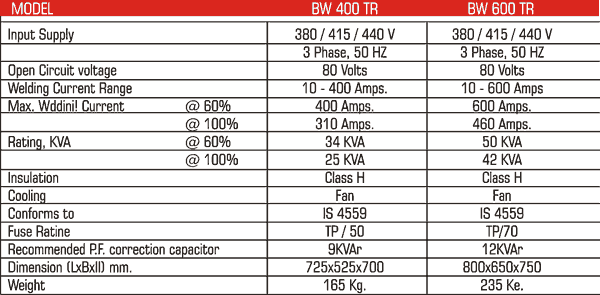

SPECIFICATIONS :-
Application :-
Fabrication and repair of
nuclear plant, chemical process plants, refineries, Steel plants,
thermal power plants etc.
* NOTE :
1)
In view of continuous
development, we reserve the right to modify the design and / or dimensions
without notice.
2) Optional Extras :- Power
factor correction capacitors, remote control unit (wherever applicable )
standard set of welding accessories etc. can be provided at extra cost. |
